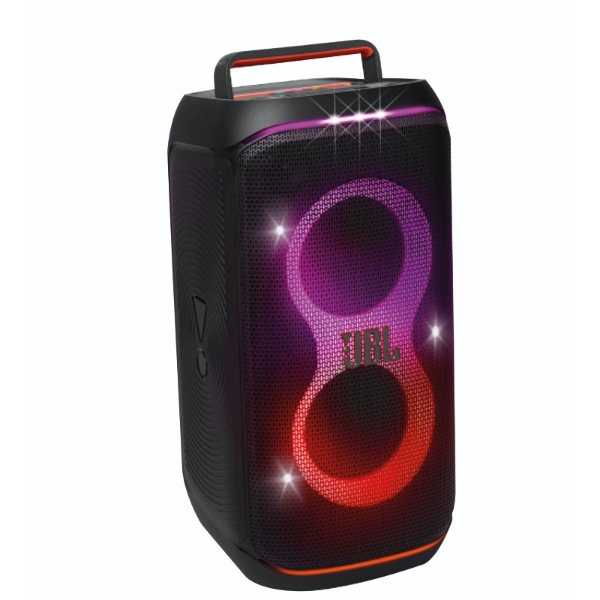

JBL Partybox Club 120 BT Speaker OH5506
Transducers: 2 x 5.25inch(133mm) woofers, 2 x 2.25inch (57mm) tweeters
Output power: 160 W RMS (IEC60268)
Power input: 100 - 240 V ̴ 50/60 Hz
Frequency response: 40 Hz - 20 kHz (-6dB)
Signal-to-noise ratio: > 80dB
Battery type: JBL BATTERY200 Li-ion polymer 34 Wh
(equivalent to 7.2V / 4277mAh)
Battery charge time: 3.5 hours (speaker off mode)
Music play time: up to 12 hours (varies by volume
level and audio content)
Cable type: AC power cable (type varies by regions)
Cable length: 2.0 m / 6.6 ft
USB charge out: 5V / 2.1A (Max) (speaker off mode)
USB format: FAT16, FAT32
Bluetooth® version: 5.4
Bluetooth® profile: A2DP V1.4, AVRCP V1.6
Bluetooth® transmitter frequency range: 2.4 GHz -
2.4835 GHz
Bluetooth® transmitter power: ≤ 18 dBm (EIRP)
Bluetooth® transmitter modulation: GFSK, π/4
DQPSK, 8DPSK
Supported formats: .MP3, .WAV, .WMA, .FLAC
Input Sensitivity:
Aux-In: 370mV RMS (3.5mm connector)
Mic-In: 20mV RMS
Guitar-In: 100mV RMS
Bluetooth/USB input: -9dBFS
